QUNDIS water meters at a glance

QUNDIS supplies both mechanical and electronic water meters. These products – called Q water – reliably record the cold and hot water consumption within the building. Depending on the type of device and installation material, all our devices can be integrated with the water pipe on the surface or in the wall.

Our metering instruments offer great advantages for metering service providers and end users: thanks to our radio add-on modules, mechanical water meters can also be used for the complete automation of consumption data acquisition. All our meters offer optimum protection against tampering of any kind.

Benefits

Simplified annual billing

Automation of remote meter reading thanks to innovative radio technology.

Standardised interfaces

And therefore suited to practically every application.

Precise metering

Certified measurement and testing facilities guarantee the metering accuracy of our water meters

Transparent metering

Information and meter readings for tenants can be viewed on the display at any time, and even retrospectively in the case of electronic models

Upgradable and flexible

Mechanical meters can be upgraded with radio technology or a complete system change (e.g. from walk-by to AMR readout) at any time.

Sales hotline
+49 361 26 280-0

We are there for you
Mo – Fr from
8 – 17 hrs.

Electronic water meters

wasserzaehler-Q-water-5.5-Qundis-elektronisch-funk

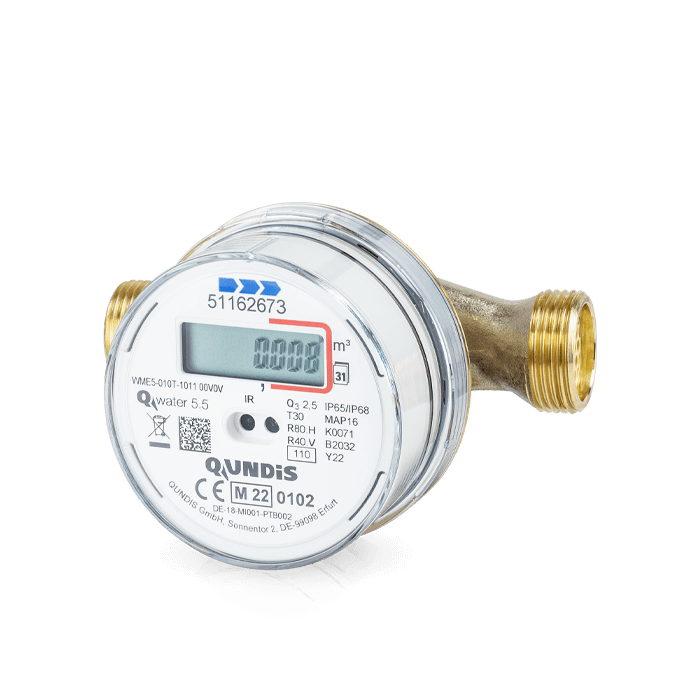

Electronic screw-type water meter Q water 5.5

  • Unique on the market: The new MID-compliant Q water 5.5 meter from QUNDIS
  • New feature: leaks are reported to the AMR system (enables provision of useful additional services)
  • A lot of configuration possibilities available (e. g. labelling or precision classes)
  • New benchmarks in terms of radio performance: remote meter reading possible 365 days a year either on site (Q AMR) or in mobile form (Q walk-by)
  • No difference between displayed and transmitted consumption values
  • Easy fitting thanks to a plastic capsule seal and automatic radio activation
  • Compatible with all QUNDIS system solutions
Screw-type water meter variants

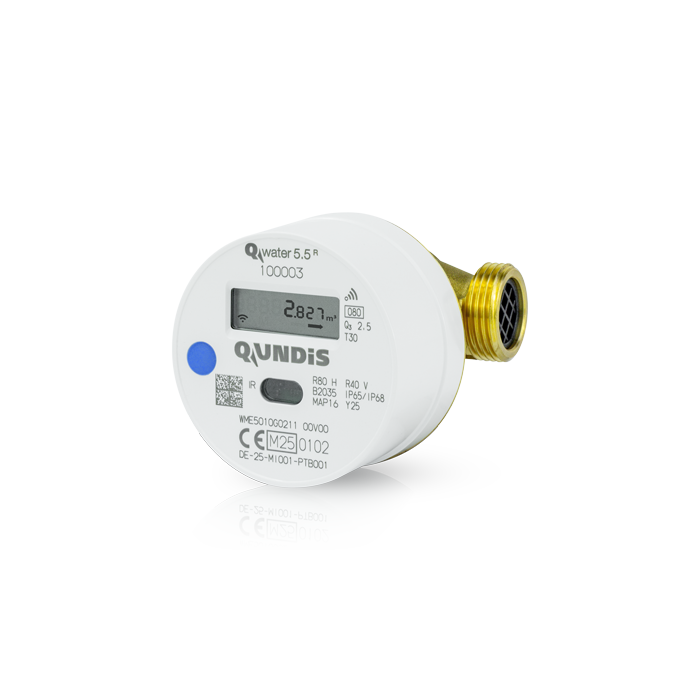

Surface-mounted 80 mm Q3 2,5 m³/h

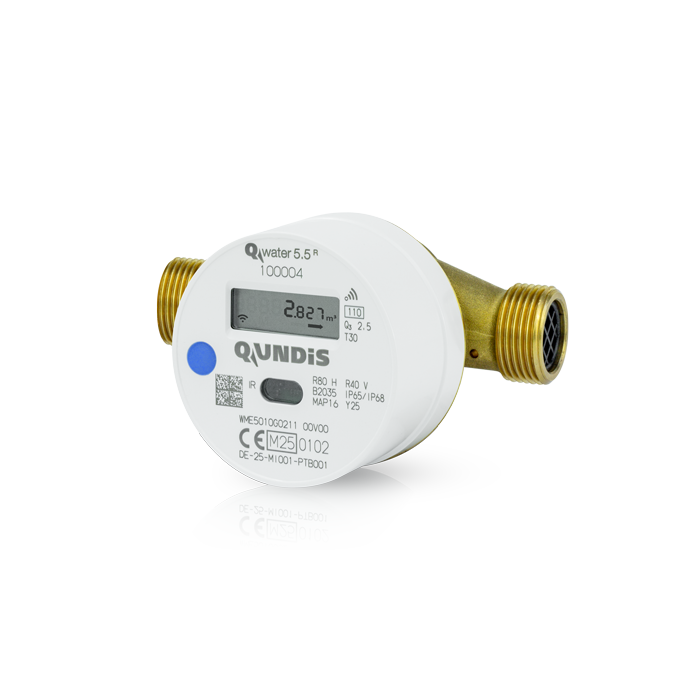

Surface-mounted 110 mm Q3 2,5 m³/h

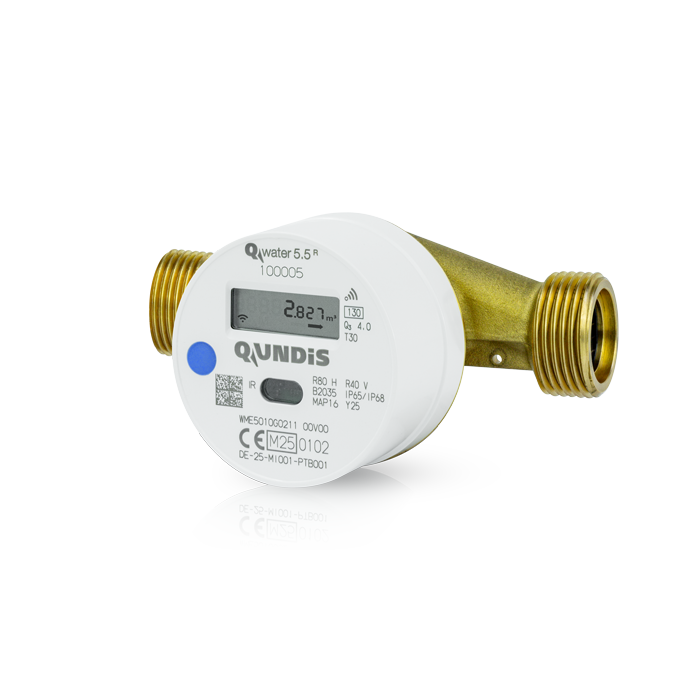

Surface-mounted 130 mm Q3 4 m³/h

Q AMR

Q walk-by

Product Flyer
(PDF file, 87 KB)

Data sheet
(PDF file, 1 MB)

messkapsel-wasserzaehler-q-water-5-5-elektronisch-funk-qundis-1

Electronic water meters

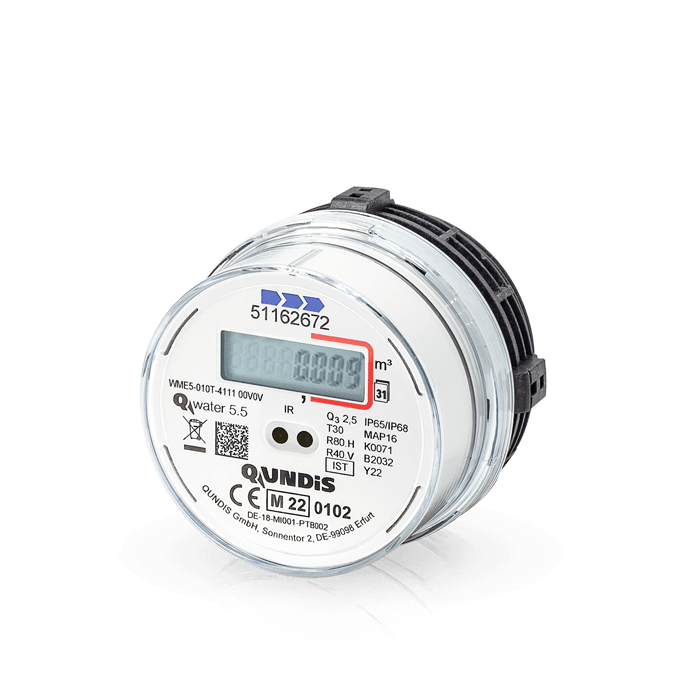

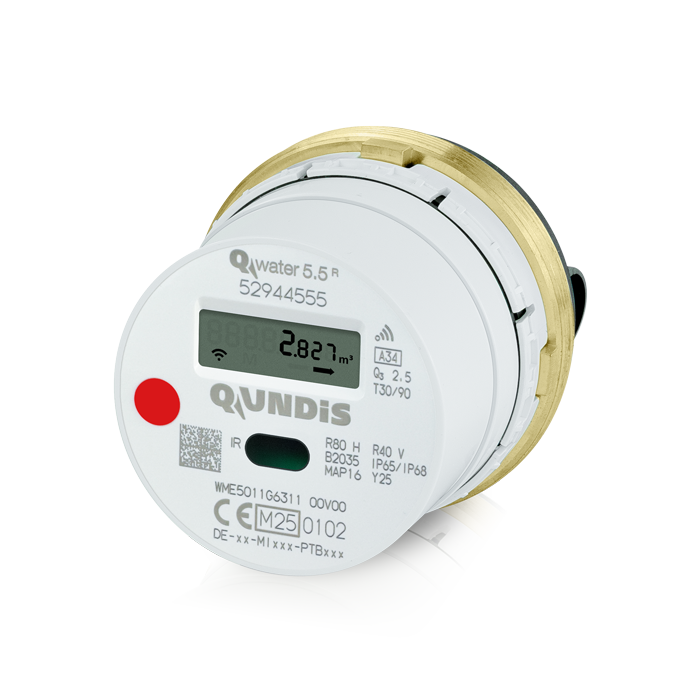

Electronic measuring capsule water meter Q water 5.5

  • Unique on the market: The new MID-compliant Q water 5.5 meter from QUNDIS
  • Wide range of measuring capsule variants for the most common EAT connection interfaces
  • New feature: leaks are reported to the AMR system (enables provision of useful additional services)
  • A lot of configuration possibilities available (e. g. labelling or precision classes)
  • New benchmarks in terms of radio performance: remote meter reading possible 365 days a year either on site (Q AMR) or in mobile form (Q walk-by)
  • No difference between displayed and transmitted consumption values
  • Easy fitting thanks to a plastic capsule seal and automatic radio activation
  • Compatible with all QUNDIS system solutions
Measuring capsule variant Flow rate
Thread Description
Connection interface IST Q3 2,5 m³/h G2 Koax
Connection interface TE1 Q3 2,5 m³/h M62x2 Techem
Connection interface A34 Q3 2,5 m³/h M77x1,5 6H Allmess / bottom impression 3/4″
Connection interface MOC/MOE Q3 2,5 m³/h M65x2 ABB-MOC/ABB-MOE
Connection interface HT2 Q3 2,5 m³/h M66x1 307/1
Connection interface MET Q3 2,5 m³/h M64x2 Metrona K3/W3
Connection interface MB3 Q3 2,5 m³/h M76x1,5 MB3
Connection interface DM1 Q3 2,5 m³/h M60x2 Deltamess
Connection interface MUK Q3 2,5 m³/h G 2 1/4 PolluMuk
Connection interface WE1 Q3 2,5 m³/h M78x1,5 Wehrle
Connection interface WGU Q3 2,5 m³/h M66x1,25 Wasser-Geräte

Q AMR

Q walk-by

Product Flyer
(PDF file, 87 KB)

Data sheet
(PDF file, 1.3 MB)

Q_WATER_5_5_VENTILZÄHLER_MIT_150_rgb

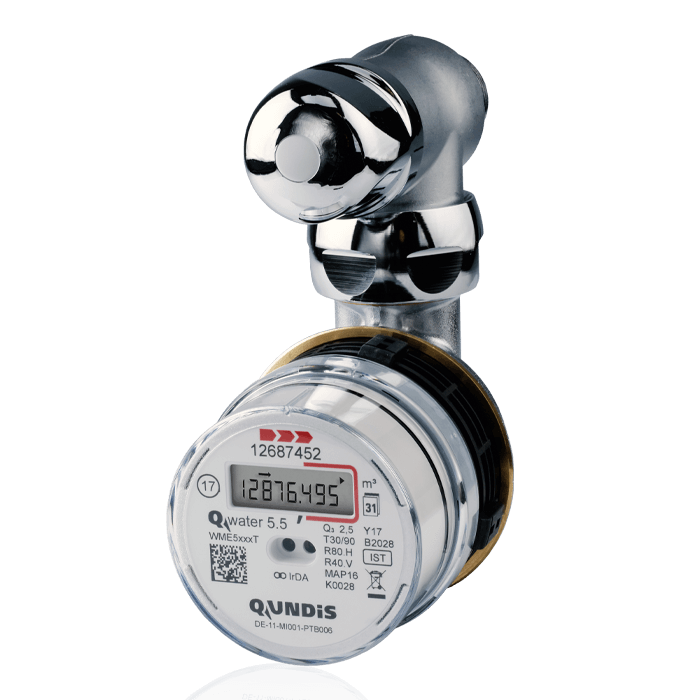

Electronic valve and bathtub water meter Q water 5.5

  • A wide range of replacement fitting kits: the Q water 5.5 is an ideal alternative to existing products from numerous large manufacturers
  • Strong radio performance: ideally suited for remote meter reading Q AMR (OMS-compliant) and Q walk-by (365 days / year)
  • The QUNDIS connection kit can be combined at any time with the Q water 5.5 IST in all versions (C-mode, S-mode, cold, warm, etc.), since the kit and the meter are supplied separately in one package.
  • Connection kit for new equipment – scope of delivery: chrome-plated valve meter fitting, centre piece, chrome-plated connection housing and accessories (seals, O-rings etc.) – Note: Q water 5.5 IST has to be ordered separately
  • Replacement connection kit – scope of delivery: centre piece, chrome-plated connection housing and accessories (seals, O-rings etc.) – Note: Q water 5.5 IST has to be ordered separately
  • Properties with TZ90 converted hot water cost allocators can now also be equipped with the BBV 5523 connection kit and the Q water 5.5 IST can be read out by radio.
  • Compatible with all QUNDIS system solutions
Replacement and connection kits
Mounted fitting / device QUNDIS
QUNDIS WMx36.DVN  Q water 5.5 IST mit Anschlussbausatz BBV 5521
ALLMESS Controller V  Q water 5.5 IST with connection kit BBV 5521
Wasser-Geräte Valve meter Q water 5.5 IST with connection kit BBV 5521
Elster M140 with measuring capsule MO-A/MO-F Q water 5.5 MOC*
Techem TZ 90 Q water 5.5 IST with connection kit BBV 5523

* Meter fits directly into existing connection interface (BBV 5521 connection kit is not required)

Q AMR

Q walk-by

Product Flyer
(PDF file, 87 KB)

Mechanical water meters

QUNDIS_mech_Wasserzaehler_Verschraubung_kalt_Qwater4-300x300

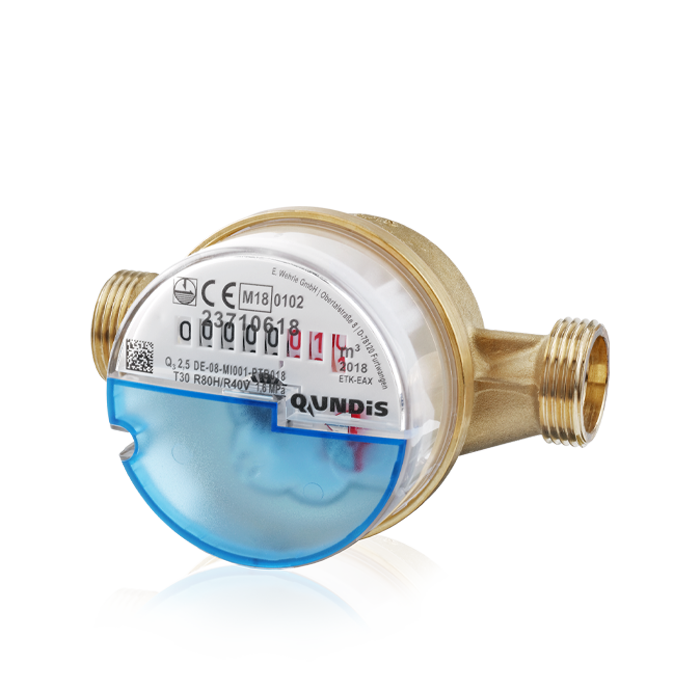

Mechanical screw type water meter Q water 4

  • Screwed directly to the pipe system
  • Visual meter reading via the display of the roller counter
  • Radio modules for retrofitting enable integration with the Q walk-by and Q AMR systems
Screw-type variants
Surface-mounted 80 mm Q3 2,5 m³/h
Surface-mounted 110 mm Q3 2,5 m³/h
Surface-mounted 130 mm Q3 4 m³/h

Q basic

Data sheet Q water 4 (MAD)
(PDF file, 188 KB)

Data sheet Q water 4 (WEH)
(PDF file, 805 KB)

QUNDIS_mech_Wasserzaehler_IST_warm_Qwater4_WEH_1000x1000

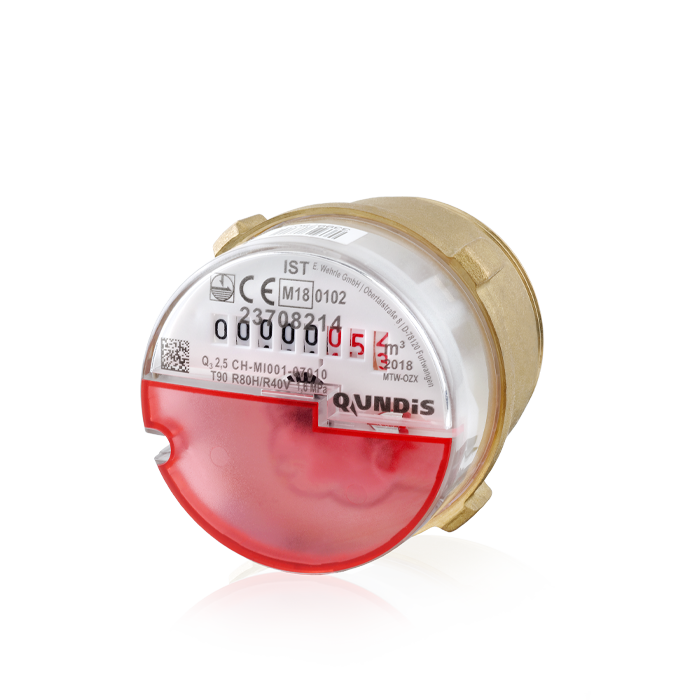

Mechanical measuring capsule water meter Q water 4

  • Screwed directly to the pipe system as a measuring capsule meter via an EAT/EAS (separate housing)
  • Suitable measuring capsules are available for existing EATs from different manufacturers
  • Visual meter reading via the display of the roller counter
  • Radio modules for retrofitting enable integration with the Q walk-by and Q AMR systems

Connection interface A34Q3 2,5 m³/hM77x1,5 6HAllmess / bottom impression 3/4″

Measuring capsule variant
Flow rate
Thread Description
Connection interface IST Q3 2,5 m³/h G2 Koax
Connection interface TE1 Q3 2,5 m³/h M62x2 Techem
Connection interface A34 Q3 2,5 m³/h M77x1,5 6H Allmess / bottom impression 3/4″
Connection interface MOC/MOE Q3 2,5 m³/h M65x2 ABB-MOC/ABB-MOE
Connection interface HT2 Q3 2,5 m³/h M66x1 307/1
Connection interface MET Q3 2,5 m³/h M64x2 Metrona K3/W3
Connection interface MB3 Q3 2,5 m³/h M76x1,5 MB3
Connection interface MB2 Q3 2,5 m³/h M80x1,5 MB2
Connection interface DM1 Q3 2,5 m³/h M60x2 Deltamess
Connection interface MUK Q3 2,5 m³/h G 2 1/4 PolluMuk
Connection interface WE1 Q3 2,5 m³/h M78x1,5 Wehrle
Connection interface WGU Q3 2,5 m³/h M66x1,25 Wasser-Geräte

Q basic

Data sheet Q water 4 (WEH)
(PDF file, 655 KB)

Wasserzaehler-Set-WMM5-Qmodule5.5-water-Modularis-min

Mechanical water meter sets WMM5

  • Mechanical QUNDIS water meters Q water 4 as a set, together with the radio add-on module Q module 5.5 water Modularis
  • Entirely pre-assembled and parameterized – for easy installation
  • Compatible also with the systems Q walk-by and Q AMR
  • Remote meter reading possible 365 days a year
WMM5 screw-type variants
Surface-mounted 80 mm Q3 2,5 m³/h
Surface-mounted 110 mm Q3 2,5 m³/h
Surface-mounted 130 mm Q3 4 m³/h
WMM5 measuring capsule variants
Flow rate
Thread Description
Connection interface IST Q3 2,5 m³/h G2 Koax
Connection interface A34 Q3 2,5 m³/h M77x1,5 6H Allmess / bottom impression 3/4″
Connection interface TE1 Q3 2,5 m³/h M62x2 Techem
Connection interface MOC/MOE Q3 2,5 m³/h M65x2 ABB-MOC/ABB-MOE
Connection interface MET Q3 2,5 m³/h M64x2 Metrona K3/W3
Connection interface HT2 Q3 2,5 m³/h M66x1 307/1
Connection interface MB2 Q3 2,5 m³/h M80x1,5 MB2
Connection interface DM1 Q3 2,5 m³/h M60x2 Deltamess

Q AMR

Q walk-by

Product Flyer
(PDF file, 139 KB)

Mechanical domestic water meters

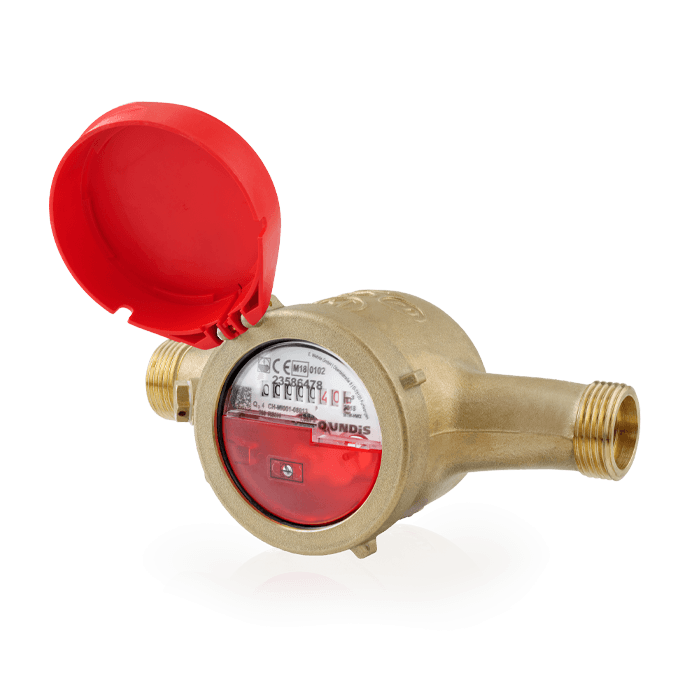

Mechanical residential water meters

  • Mechanical residential water meters from QUNDIS
  • MID-compliant multi-jet dry runner
  • Module shaft for retrofitting QUNDIS modularis radio add-on modules (Q module 5.5 water Modularis) for integration into the Q walk-by and Q AMR systems
  • Visual meter reading via the 360° rotatable 8-digit totalizer
  • Maximum pressure load 1.6 MPa

The current range includes meters with permanent flow rates from Q3 2.5 m3/h to 25 m3/h.

Other variants on request.

Flow rate
Installation length
Thread Nominal width
Q3 4.0 m³/h 190 mm (horizontal) G1″ 20 DN
Q3 4.0 m³/h 105 mm (ascending) G1″ 20 DN
Q3 10.0 m³/h 260 mm (horizontal) G1¼” 25 DN
Q3 10.0 m³/h 150 mm (ascending) G1¼” 25 DN
Q3 16.0 m³/h 300 mm (horizontal) G2″ 40 DN

Q basic

Q AMR

Q walk-by

Data sheet
(PDF file, 228 KB)

The various types of water meter

We distinguish between mechanical and electronic water meters in our Q water products. The various advantages and disadvantages are outlined here:

Electronic water meters

  • Annual consumption values are automatically saved on the readout date
  • More transparency for tenants (they can check the stored values on the display)
  • Various displays possible
  • Monthly statistics are transmitted automatically
  • Analysis of consumption behaviour possible
  • Easy error detection by algorithms (e.g.: leaks are quickly detected)
  • Tamper proof

Mechanical water meters

  • Readout must be on the scheduled day
  • The roller counter only shows the current reading
  • Counts forwards and backwards
  • Tamper proof
  • Inexpensive to buy
  • Upgradeable with QUNDIS radio add-on modul
  • Extendable functions: storage of monthly statistics, automatic transfer of the annual consumption on the scheduled date

FAQ

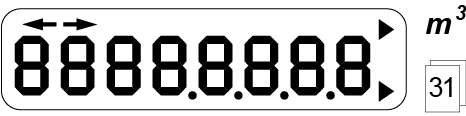

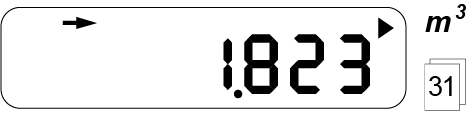

What is the meaning of the numbers and symbols on the display of the electronic water meter?

We offer various types of electronic water meter. The data sheets on our website will explain to you what appears in the display of your water meter.
