QUNDIS Smart Metering Plattform
The cloud-based, all-round solution for the recording of consumption data.

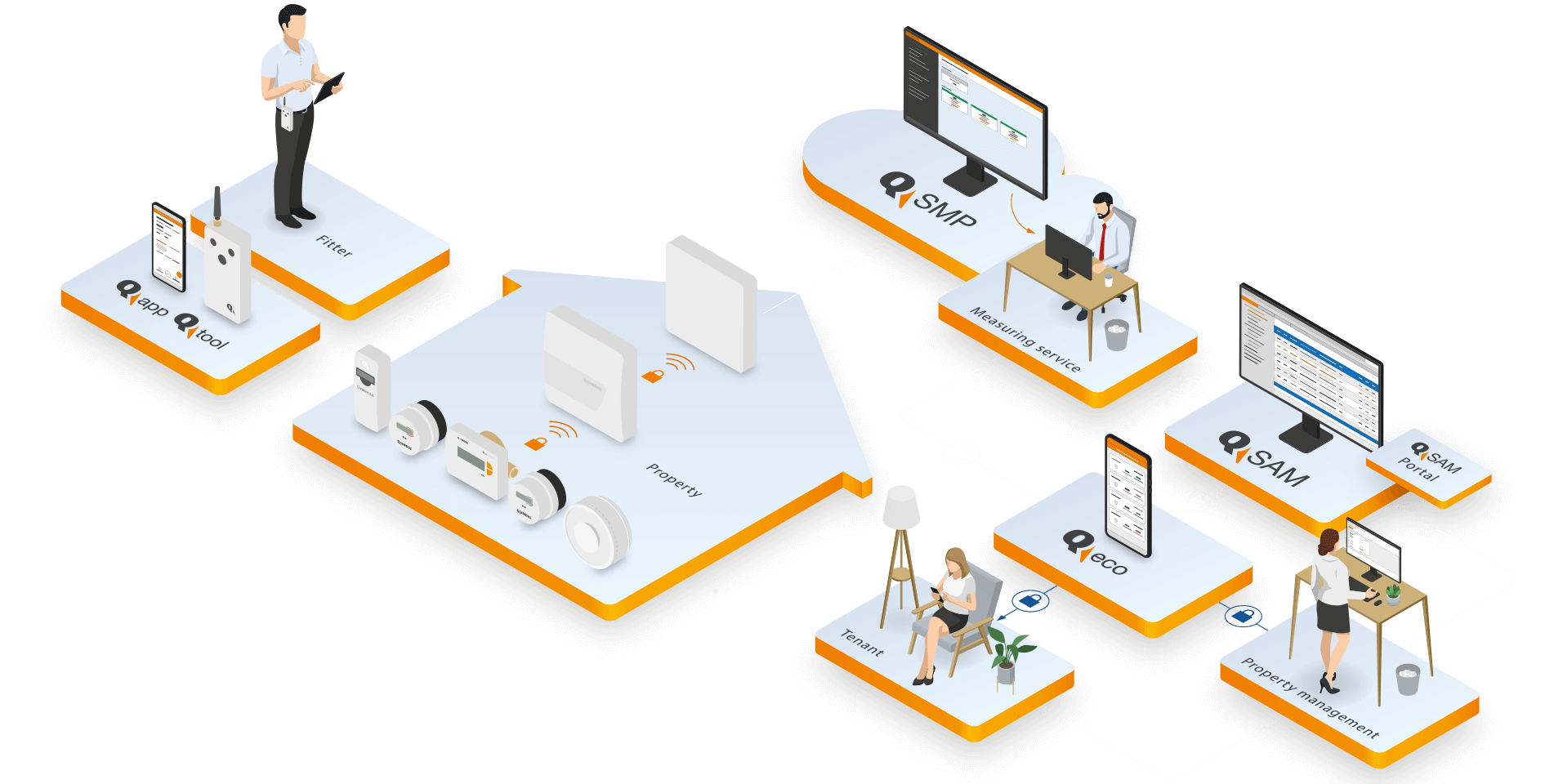

When using our Q AMR remote meter readout system it will be complimented by the QUNDIS Smart Metering Platform. The cloud-based Q SMP makes the required meter data available to the metering service – by email or SFTP – fully automatically in various data formats.
The requirements for the readout of the Q AMR meters of your real estate properties are our gateways Q gateway 5 or Q gateway 5.5 direct, the conclusion of a communication service contract with QUNDIS, and registration for the use of the Q SMP web portal.
- time and cost savings are created by fast setup and proactive maintenance
- external operation and external data hosting make a complex in-house IT infrastructure unnecessary
- permanent data availability thanks to modern transmission technology which is not dependent on operating systems
- problem-free continued use of existing metering devices thanks to the open transmission standard
- complete organisation of mobile data transmission management
- consumption information can be made available at any time of the year via tenant portals
Image brochure
(PDF file, 6 MB)
State-of-the-art data processing
The unique Q SMP smart metering platform provides you with maximum flexibility in your daily operations.
While we take care of the all-round management of the mobile radio data and the transmission of the consumption data of your QUNDIS gateways, you can concentrate fully on your customer support operations.
Our Q SMP service covers
- M2M SIM card administration, with tariff and data volume processing for the Q gateway 5 or Q gateway 5.5 direct
- the supply of status information and consumption data at predefined intervals by email or SSH FTP and
- use of the Q SMP web portal for gateway management.
The recorded consumption data for your properties is available immediately for individual processing, e.g. for the billing of utility costs or for analysis purposes. You can also use the data for further applications such as tenant portals and apps.
The Q SMP web portal

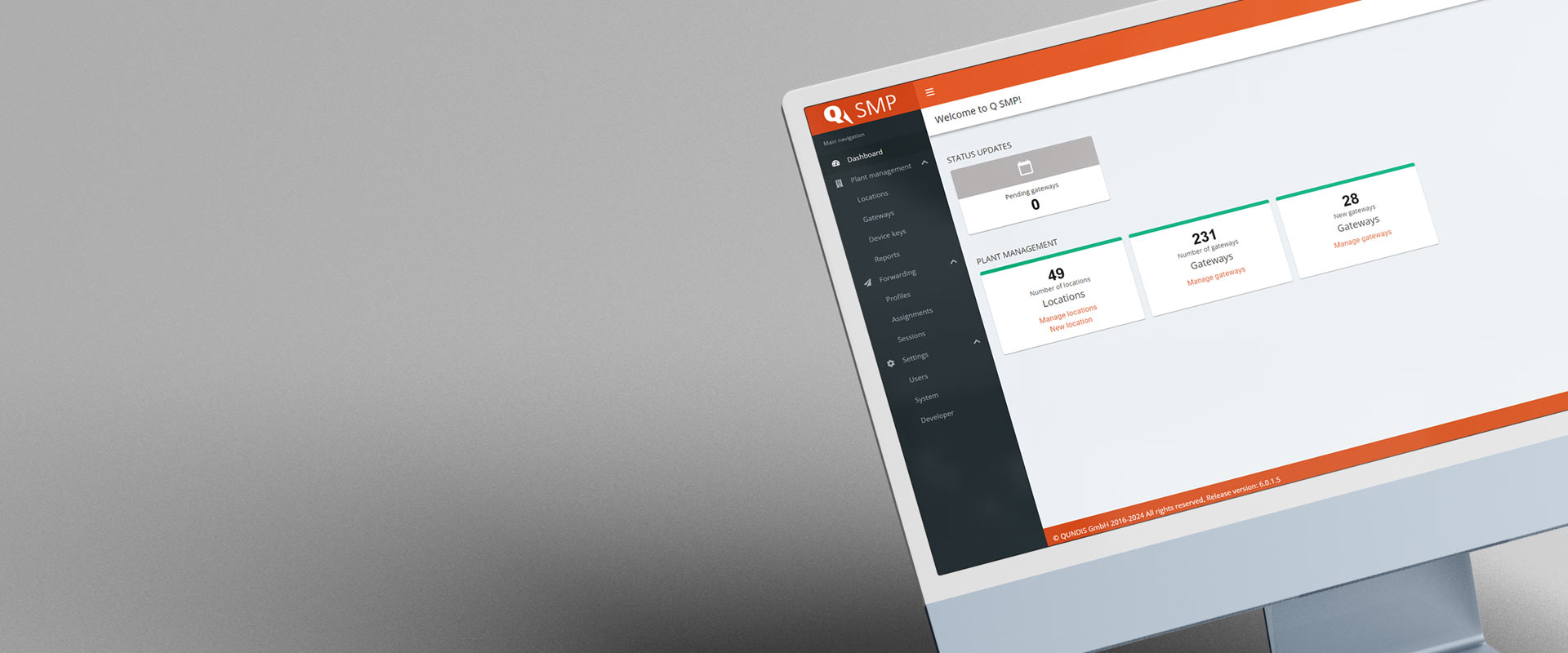

You administer and monitor the remote meter readout operations for your properties via the web portal of the QUNDIS smart metering platform (Q SMP).

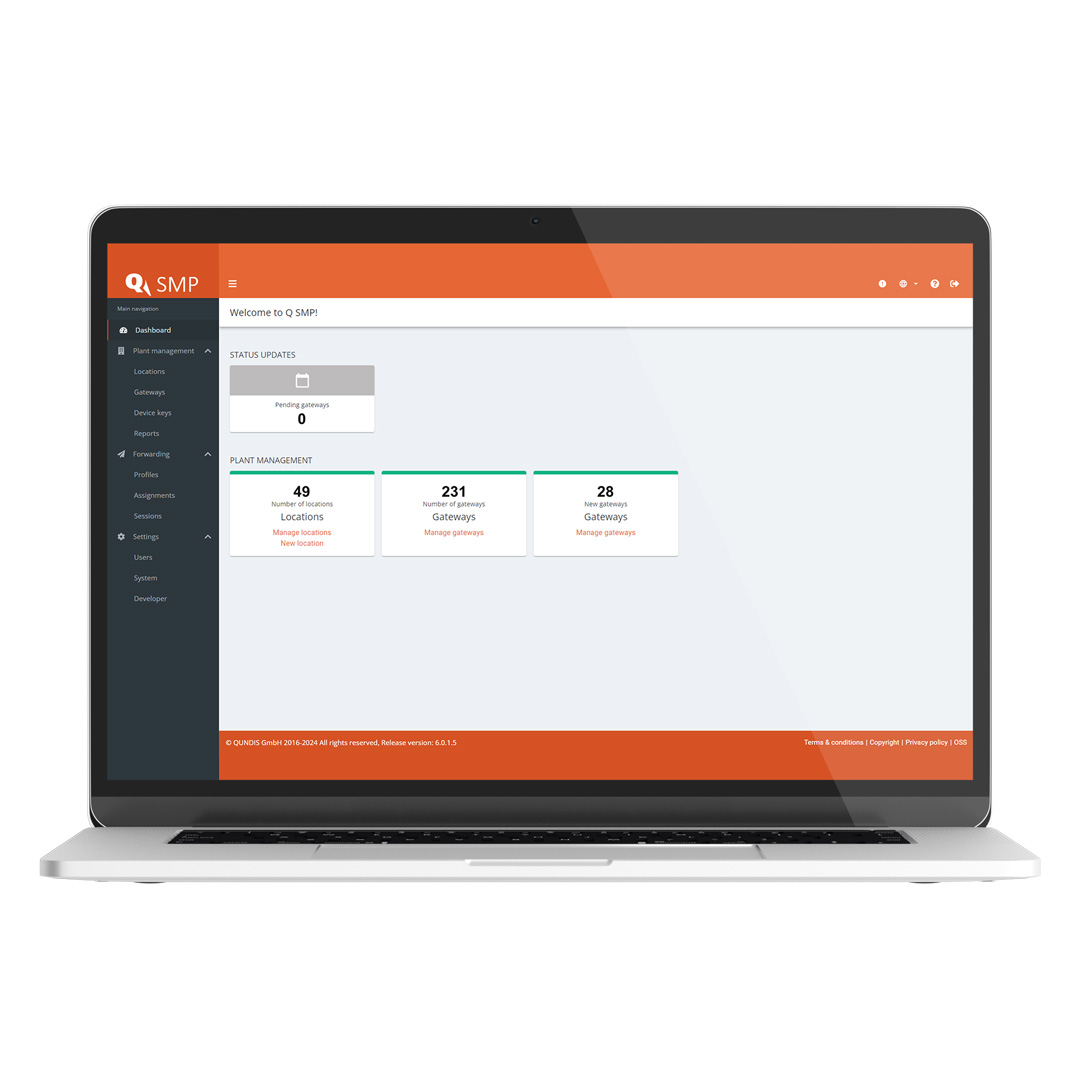

- The management dashboard provides you with a fast overview of the status of all the Q AMR systems of your properties.

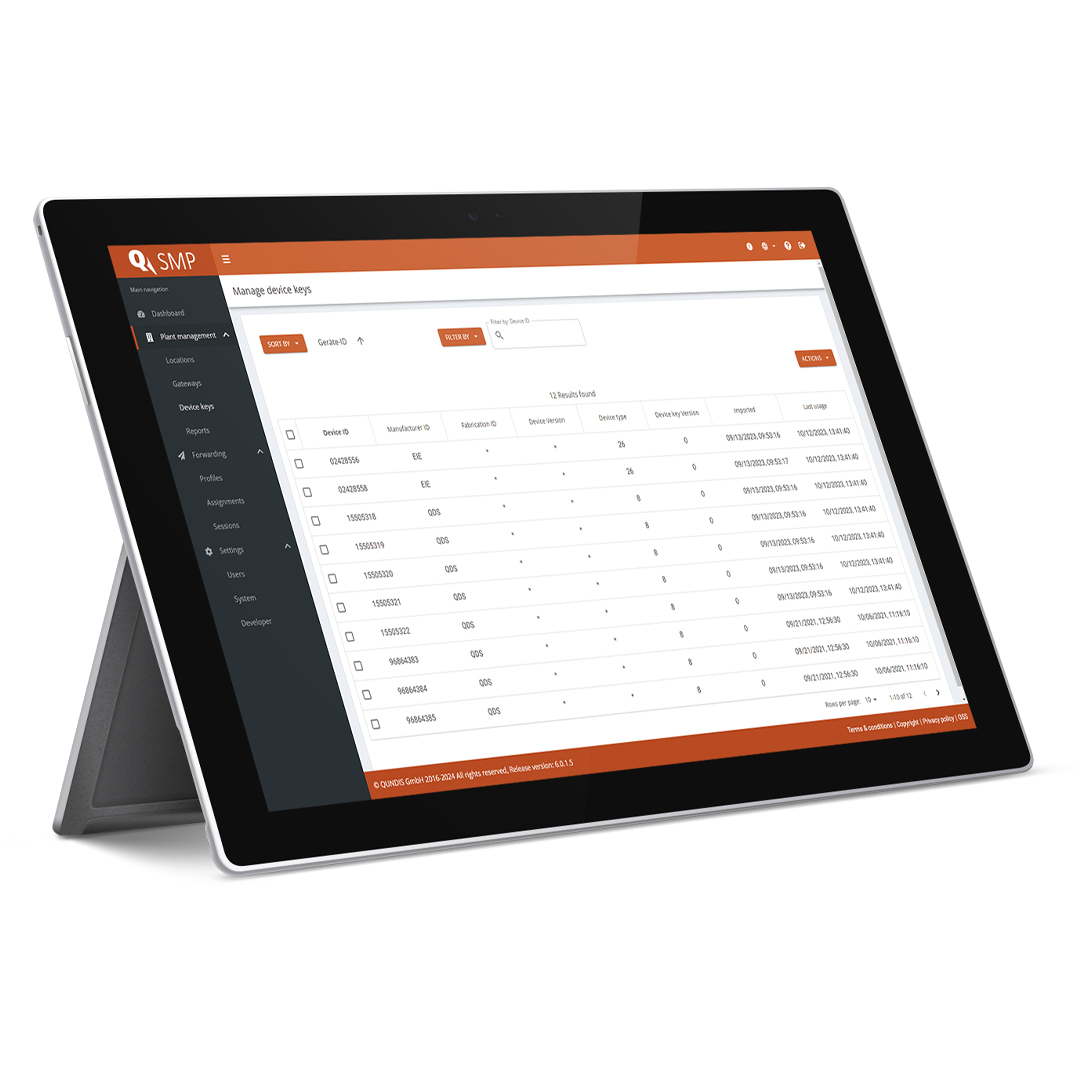

- The device administration enables you at any time to view the current operating status of your QUNDIS gateways and provides it with locational information.
- For every gateway you can conveniently configure the regular readout intervals with individual starting dates, together with a maintenance readout if required.
- For the Q gateway 5 there are several possibilities for assigning the AMR networks which are to be read out – either manually via the auto installation function, or after implementing a network scan.

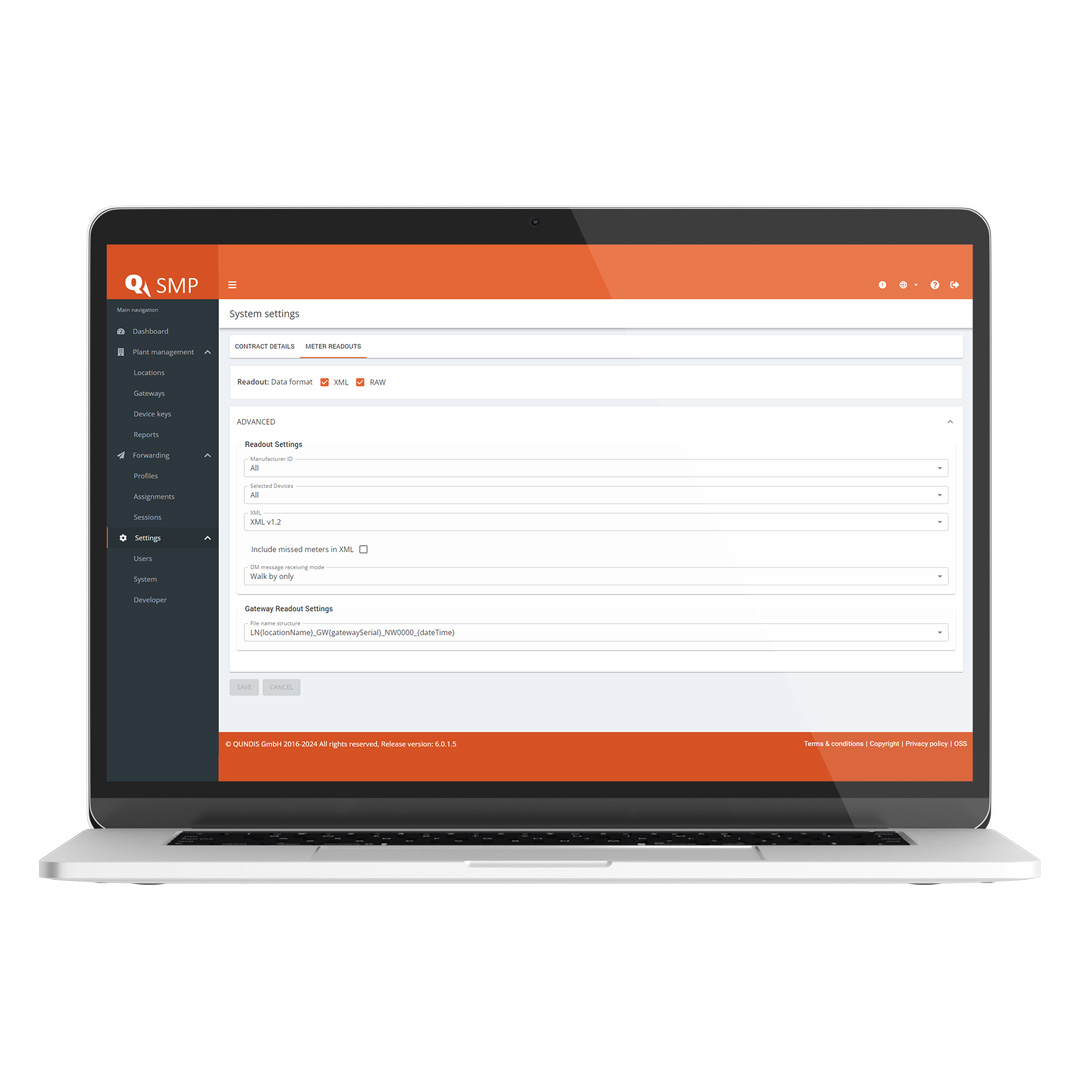

- The profile settings enable you to register a standard dataset with email addresses and attachment passwords, making it even easier to set up network scans or to record consumption data.
- You have full control over the use of your data. The data-processing is in line with the highest security standards.
How we ensure maximum data security.
All data flows of the QUNDIS Q SMP smart metering platform are encrypted and are subject to European data protection regulations. As the user you have full control of your data.
Service tariffs for Q gateway 5
Tariff designation | Data supply |
Data provision |
AMR networks per gateway |
Use of web portal | Contractual period |
Price | |
QGW-A-024-0000 | 2x monthly | by e-mail / SSH FTP | max. 5 | incl. | 5 years* | on request | |
QGW-A-052-0000 | 1x weekly | by e-mail / SSH FTP | max. 5 | incl. | 5 years* | ||
customer-specific tariff | daily to annual | by e-mail / SSH FTP | max. 30 | incl. | 5 years* |
* At the end of the contractual period the contract will be automatically extended by a further year, unless it is terminated with a period of notice of 6 months before the end of the contractual period. For further provisions please see QUNDIS Portal.
Service tariffs for Q gateway 5.5 direct
Tariff designation | Data supply |
Data provision |
max. devices / readout |
Use of web portal | Contractual period |
Price | |
QGW-D-012-0000 | 1x monthly | by e-mail / SSH FTP | max. 250 | incl. | 5 years* | on request | |
QGW-D-024-0000 | 2x monthly | by e-mail / SSH FTP | max. 400 | incl. | 5 years* | ||
QGW-D-365-0000 | daily to annual | by e-mail / SSH FTP | max. 350 | incl. | 5 years* |
* At the end of the contractual period the contract will be automatically extended by a further year, unless it is terminated with a period of notice of 6 months before the end of the contractual period. For further provisions please see QUNDIS Portal.
Related products
Gateways
The Q gateway 5 or the Q gateway 5.5 direct implements the remote readout within the building. All the administrative and data recording operations of the gateway can be conveniently controlled via the web portal of the Q SMP smart metering platform.

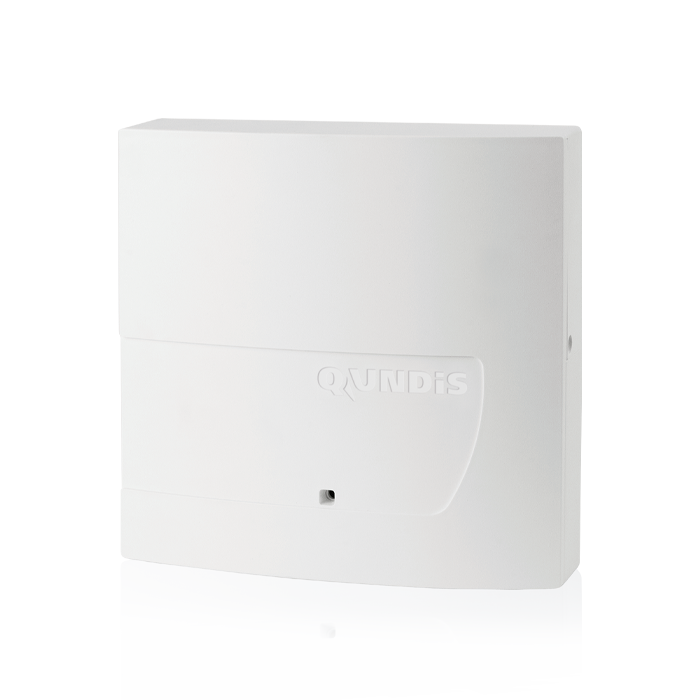

Network node
The Q node 5 network node is at the core of the Q AMR remote readout system, receiving the consumption data from the meters and distributing it within the network. The individual network nodes can provide all readout values by communicating with each other. Values are read out on-site by radio or by cable connection via any available node.
